IEC C18/M Appliance Inlet Connector - Screw Panel Mount, Quick Connect Terminals 4.8x0.8mm - Perfect for Home Appliances & Electronics Power Supply

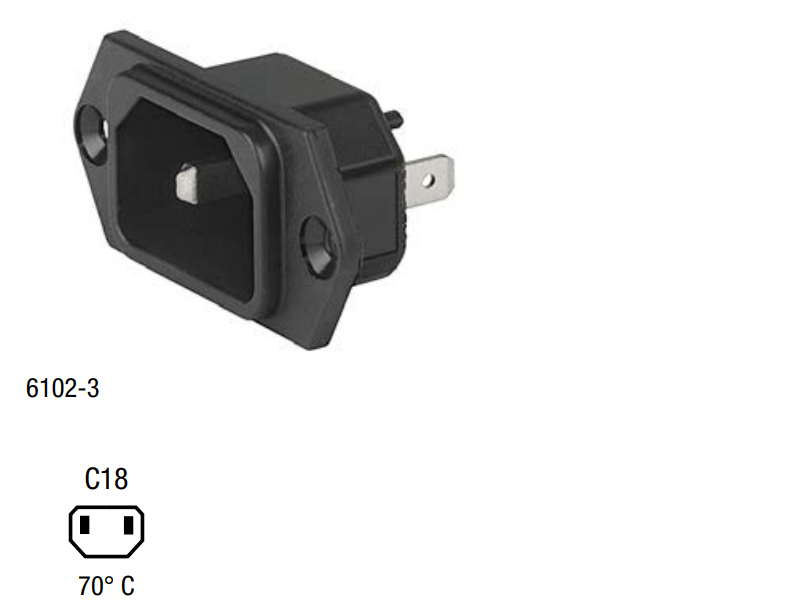

Schurter 6102.3200, IEC Appliance Inlet C18, Screw Panel Mounting, Front Side, Quick connect terminals 4.8 x 0.8 mm

Features

• Panel Mount : Screw Mounting from Front Side
• Appliance Inlet C18/M Socket acc to IEC 60320-1
• 4.8 x 0.8mm Fastron Pins
• 120 °C pin Temperature
• Quick connect terminals 4.8 x 0.8 mm

Characteristics

• UL 60320-1, CSA C22.2 no. 60320-1 (for hot conditions) pin-temperature 120 °C, 10A, Protection Class I
• Other Thickness versions available on request
• Types for enhanced glow wire test requirements acc. IEC 60695-2- 12 and -13 for the use in unattended household equipment acc. IEC 60335-1

Specification

Datasheet
