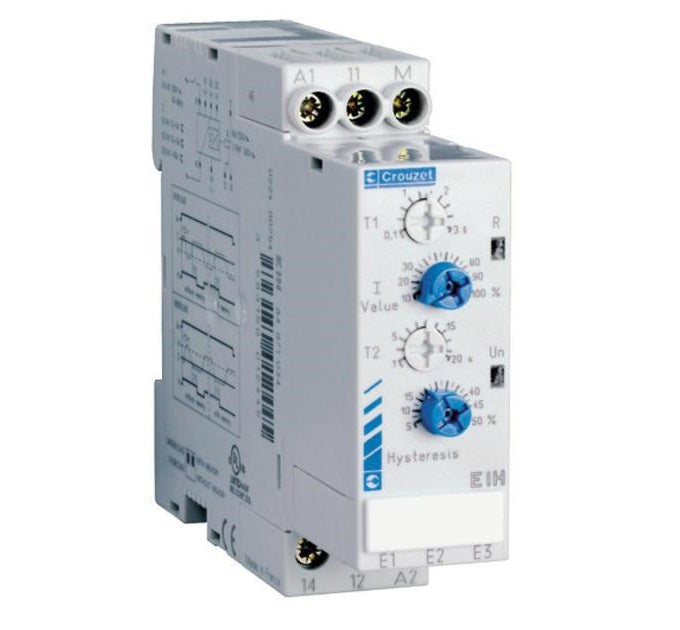

EIH Series Current Monitoring Relay - Single Phase 0.1-10A with Hysteresis & T2 Time Delay (100-240VAC/24VDC) - Replacement for Obsolete 84871034 - Ideal for Industrial Automation & Motor Protection

$188.47 $342.69 -45%

Free shipping on all orders over $50

7-15 days international

25 people viewing this product right now!

30-day free returns

Secure checkout

27649949

Guranteed safe checkout

DESCRIPTION

Crouzet Automation 84871034, Current Monitoring Relay with Hysteresis and T2 time Single Phase 0.1 - 10 Amp EIH Series, 100-240VAC/24VDC Supply, Obsolete, Replaced by

For Current Monitoring of AC Current from 1 Amp to 20 Amp.

Features:

0.1 to 10 Amp Trip Range
0.1 to 10 Second Trip Delay
0 to 100% Hysteresis
T2 Hysteresis Delay Time
True RMS measurement

Specification

Crouzet Part Number	84871034 (Single Phase C-Lynx Current Monitoring Relay With SPDT Contacts)
Function	Current Threshold Montoring
Nominal Current	0.1- 10 Amp AC
Digital Outputs	1 x C/O Relays, 250VAC/DC @ 8 Amp
Min Breaking Current	10mA/5VDC
Delay on Threshhold Crossing	0.1 → 3s (0, +10%)
Delay on Pickup	600ms
Alarm Delay on Time (max)	200ms
Reset Time	1500ms
Adjustable Hysteresis	5 - 50% of Threshhold
Maximum Measurement Cycle Time	30ms/True RMS Measurement
Measurement Accuracy	1%
Supply Voltage Range	24VAC/DC 48VAC 120/220VAC +/-15%
Termination Style	Screw
Weight	170g
Certification	CE, UL, CSA, GL, ROHS
Factory Pack Qty	1
Over Voltage Category	3 in accordance with IEC/EN 60664-1
Pollution Degree	2 in accordance with IEC/EN 61131-2
Protection rating	IP40 (Front), IP20 (Rear)
Mechanical Resistance	Immunity to vibrations IEC/EN 60068-2-6, test Fc Immunity to shock IEC/EN 60068-2-27, test Ea
Resistance to HF Interference	Immunity to radiated electrostatic fields IEC/EN 61000-4-3 Immunity to fast transients (burst immunity) IEC/EN 61000-4-4, level 3 Immunity to shock waves IEC/EN 61000-4-5 Radio frequency in common mode IEC/EN 61000-4-6, level 3 Voltage dips and breaks (AC) IEC/EN 61000-4-11 Immunity to damped oscillatory waves IEC/EN 61000-4-12
Conducted and radiated emissions	Class B () in accordance with EN 55022, EN 55011 (CISPR22, CISPR11) group 1 () Except configuration (88 970 1.1 or 88 970 1.2) + (88 970 250 or 88 970 270) + 88 970 241 class A (class B in a metal enclosure)
Operating Temperature	-20 →+70 °C except CB and XB versions in VDC : -30 →+70 °C (+40 °C in a non-ventilated enclosure) in accordance with IEC/EN 60068-2-1 and IEC/EN 60068-22
