3 Phase Current Transformer 630A 5A Output - Class 0.5 5VA, Panel & Busbar Mount - for Industrial Power Monitoring & Electrical Panel Installations

$54.45 $99 -45%

Free shipping on all orders over $50

7-15 days international

15 people viewing this product right now!

30-day free returns

Secure checkout

20635931

Guranteed safe checkout

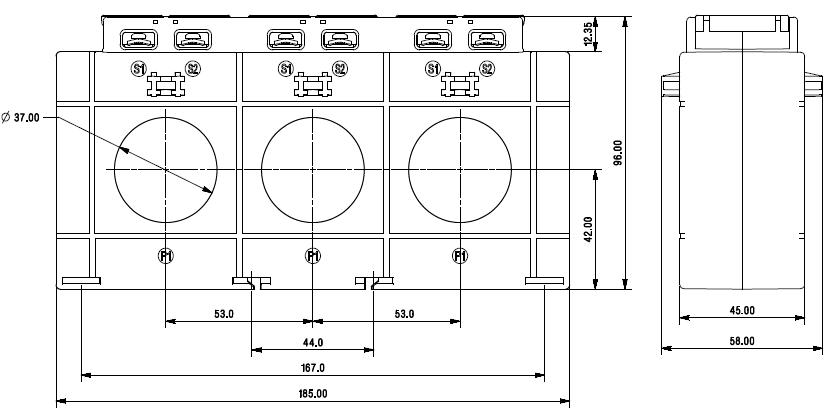

Rishabh 3PH185-37(45) 630, Class 0.5 5VA, Class 1, 5VA 630 Amp, 5 Amp Output, 3 Phase Current Transformer, Panel Mount, Busbar Mount

Rishabh Part Number	3PH185-37(45) 630
Technology	AC Current Transformer
Ratio	630/5
Aperture Size	⌀37mm
VA Rating	5VA
Accuracy Class	Class 1 / Class 0.5
Output	5 Amp AC (+20%)
Isolation	3kV (AC, 50Hz, 1 min)
Bandwidth	50-60Hz
Mounting Style	Panel Mount/Din Rail Mount
Operating Temperature Range	-30°C / 85°C
Continuous Current (max)	630Amp x 1.2
Termination Style	Screw
Unit Weight	1500g
Factory Pack Qty	9
