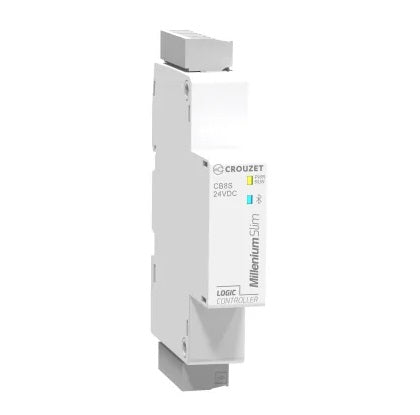

Millennium Slim CB8S8 - 8 I/O Programmable Controller with 2 Convertible Digital/Analog/High-Speed Inputs, 2 Convertible Digital/Analog/PWM Outputs, 4 Static/PWM Outputs, 24VDC Power, Bluetooth Connectivity, Virtual Display & Data Logger - Free Software Included for Industrial Automation & Smart Home Applications

Millennium Slim CB8S8 - 8 I/O Programmable Controller with 2 Convertible Digital/Analog/High-Speed Inputs, 2 Convertible Digital/Analog/PWM Outputs, 4 Static/PWM Outputs, 24VDC Power, Bluetooth Connectivity, Virtual Display & Data Logger - Free Software Included for Industrial Automation & Smart Home Applications

$175.45 $319 -45%

Free shipping on all orders over $50

7-15 days international

25 people viewing this product right now!

30-day free returns

Secure checkout

97896776

Guranteed safe checkout

DESCRIPTION

88983902 Millenium Slim CB8S8, 8 I/O, Incl 2 Convertable Digital/Analogue/High Speed Inputs, 2 Convertable Digital/Analogue/PWM, 4 Static/PWM Outputs, 24VDC Supply, Bluetooth, Virtual Display, Dtalogger, Free software

Highly visible blue LCD with 4 lines of 18 characters and configurable backlighting
Allow the use of the entire library of specific functions blocs of the software workshop
Operating temperature range (-20 °C →+60 °C)
Analogue inputs 0-10 VDC, Potentiometer, NTC, LDR (0-20 mA/Pt100 with converters)
Non Expandable

Specification

Crouzet Part Number	88983902 Millenium Slim CB8S8
Analogue Inputs	0-10VDC (x4)
Digital Inputs	12/24VDC (4.4mA @ 12VDC) (x4)
Digital Outputs	4 x Relay, 5-30VDC,24-250VAC @ 10mA minimum
PWM SSR Output	12-24VDC @ 500mA (x4)
Expandable	No
LCD Display	No
Bluetooth App	YES
Mounting Style	DIN Rail Mount (17.5mm)
Supply Voltage Range	24VDC (21.6 - 28.8VDC)
Termination Style	Screw
Weight	200g
Certification	CE, UL, CSA, GL
Factory Pack Qty	1
Over Voltage Category	3 in accordance with IEC/EN 60664-1
Pollution Degree	2 in accordance with IEC/EN 61131-2
Protection rating	IP40 (Front), IP20 (Rear)
Mechanical Resistance	Immunity to vibrations IEC/EN 60068-2-6, test Fc Immunity to shock IEC/EN 60068-2-27, test Ea
Resistance to HF Interference	Immunity to radiated electrostatic fields IEC/EN 61000-4-3 Immunity to fast transients (burst immunity) IEC/EN 61000-4-4, level 3 Immunity to shock waves IEC/EN 61000-4-5 Radio frequency in common mode IEC/EN 61000-4-6, level 3 Voltage dips and breaks (AC) IEC/EN 61000-4-11 Immunity to damped oscillatory waves IEC/EN 61000-4-12
Conducted and radiated emissions	Class B () in accordance with EN 55022, EN 55011 (CISPR22, CISPR11) group 1 () Except configuration (88 970 1.1 or 88 970 1.2) + (88 970 250 or 88 970 270) + 88 970 241 class A (class B in a metal enclosure)
Operating Temperature	-20 →+60 °C except CB and XB versions in VDC : -30 →+60 °C (+40 °C in a non-ventilated enclosure) in accordance with IEC/EN 60068-2-1 and IEC/EN 60068-22
