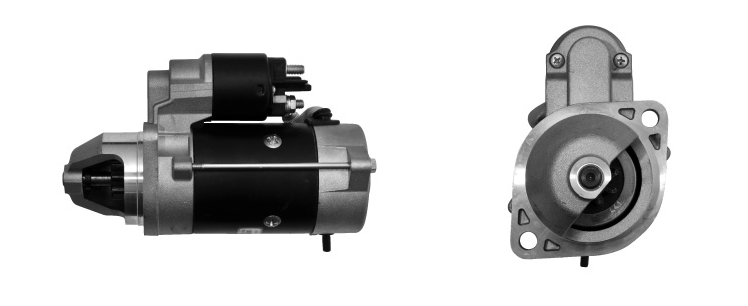

MAHLE Letrika (Iskra) 24V 3kW Starter Motor AZE6517 - Compatible with Heavy-Duty Trucks & Industrial Equipment
$475.75 $865
-45%
Free shipping on all orders over $50
7-15 days international
26 people viewing this product right now!
30-day free returns
Secure checkout
84177983
Guranteed safe checkout
DESCRIPTION
ISKRA LETRIKA (MAHLE) 11.131.485 AZE6517 MAHLE - Letrika(Iskra) Starter Motor, 24VDC
- LOMBARDINIENGINES Starter Motors - ED0058402350-S
- LOMBARDINILDW2204M/MT/TSD4-cyl, 42-64kW2.2
- LOMBARDINILDW2204M/MT/TSD4-cyl, 42-64kW2.2
- MINSK TRACTORS (BELARUS)BELARUS422LDW2204; 4cyl; 49hp2.101.13
Specification
| ISKRA (MAHLE) Part Number | 11.131.485 AZE6517 |
| ISKRA/LETRIKA/MAHLE | 11.131.485 AZE6517 IS1124 MS 441 |
| Voltage | 24VDC |
| Power | 3kW |
| No of Pinon Teeth | 9 |
| Module | 3mm |
| Unit Weight | 4.7kg |
| Factory Pack Qty | 1 |
Cross Reference
| LOMBARDINI | 5840 230 0 |
| LOMBARDINI | 5840 235 0 |
MAHLE -> MAHLE
IS112411.131.485 AZE6517 24V 3,0kWMS 441
Available S112411.131.431 AZE6508 24V 3,0kW
Superseded unit, see available P/N IS1124
Spare Parts
116.285.028MSX 1363 - Drive end bracket
215.120.182MSX 669 - Bearing
416.907.463MSX 698 - Switch
616.911.441MSX 534 - Pinion with clutch
715.421.663MSX 558 - Lever
816.916.382MSX 1222 - Reduction gea
916.907.407MSX 608 - Armature
1116.907.802MSX 902 - Fixing set
1216.286.074MSX 1149 - Stator
1316.907.409MSX 1347 - Brush holder
1416.907.322MSX 1303 - Set of brushes
1516.283.716MSX 1269 - Rear-end bracket
