Millennium 3 Smart PLC XD26 - 16 Digital Inputs (6 Analog) & 10 Relay Outputs (4 PWM) - 24V AC - Industrial Automation Controller for HVAC, Packaging & Manufacturing (Wide Temp Range -20°C to 70°C)
Millennium 3 Smart PLC XD26 - 16 Digital Inputs (6 Analog) & 10 Relay Outputs (4 PWM) - 24V AC - Industrial Automation Controller for HVAC, Packaging & Manufacturing (Wide Temp Range -20°C to 70°C)

Millennium 3 Smart PLC XD26 - 16 Digital Inputs (6 Analog) & 10 Relay Outputs (4 PWM) - 24V AC - Industrial Automation Controller for HVAC, Packaging & Manufacturing (Wide Temp Range -20°C to 70°C)

$347.73 $632.25 -45%

Free shipping on all orders over $50

7-15 days international

28 people viewing this product right now!

30-day free returns

Secure checkout

46066273

Guranteed safe checkout
amex
paypal
discover
mastercard
visa
apple pay

DESCRIPTION

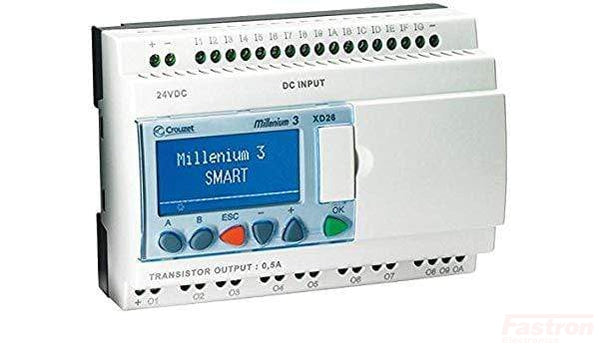

Crouzet Millenium 3 Series Programmable Logic Controllers

  • Highly visible blue LCD with 4 lines of 18 characters and configurable backlighting
  • More cost effective solution
  • Allow the use of the entire library of specific functions blocs of the software workshop
  • Extended temperature range (-20 °C →+70 °C)
  • Analogue inputs 0-10 VDC, Potentiometer, NTC, LDR (0-20 mA/Pt100 with converters)
  • Open to XN network communication extensions, digital I/O, analogue, Pt100 extensions
  • HMI Screens Available
      Specification
      Crouzet Part Number88974164 (XD26-16I/10O R)
      Analogue Inputs0-10VDC (x6)
      Digital Inputs12/24VDC (4.4mA @ 12VDC) (x16)
      Digital OutputsRelay, 5-30VDC,24-250VAC @ 10mA minimum (x10)
      PWM SSR Output12-24VDC @ 500mA (x4)
      ExpandableYes
      LCD DisplayYes
      Mounting StyleDIN Rail Mount (124.6mm)
      Supply Voltage Range24VAC (21.6 - 28.8VAC)
      Termination StyleScrew
      Weight350g
      Factory Pack Qty1
      Over Voltage Category3 in accordance with IEC/EN 60664-1
      Pollution Degree2 in accordance with IEC/EN 61131-2
      Protection ratingIP40 (Front), IP20 (Rear)
      Mechanical Resistance

      Immunity to vibrations IEC/EN 60068-2-6, test Fc

      Immunity to shock IEC/EN 60068-2-27, test Ea

      Resistance to HF InterferenceImmunity to radiated electrostatic fields IEC/EN 61000-4-3 Immunity to fast transients (burst immunity) IEC/EN 61000-4-4, level 3 Immunity to shock waves IEC/EN 61000-4-5 Radio frequency in common mode IEC/EN 61000-4-6, level 3 Voltage dips and breaks (AC) IEC/EN 61000-4-11 Immunity to damped oscillatory waves IEC/EN 61000-4-12
      Conducted and radiated emissionsClass B (*) in accordance with EN 55022, EN 55011 (CISPR22, CISPR11) group 1 (*) Except configuration (88 970 1.1 or 88 970 1.2) + (88 970 250 or 88 970 270) + 88 970 241 class A (class B in a metal enclosure)
      Operating Temperature-20 →+70 °C except CB and XB versions in VDC : -30 →+70 °C (+40 °C in a non-ventilated enclosure) in accordance with IEC/EN 60068-2-1 and IEC/EN 60068-22

      Datasheet
      Software
